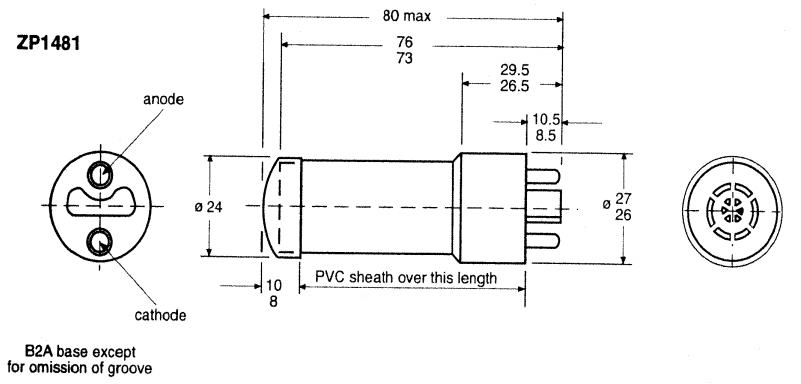

ZP1481 Geiger Muller Tube
End Window halogen-quenched Beta and Gamma radiation counter tube. The ZP1481 may be used with socket type number MX199/SOCKET.
Specification & Models:
| Specification | Value |
|---|---|
| Dose Rate Range |
10-3 to 2 x 10-2 mGy/h 10-4 to 2 R/h |
| Plateau Threshold Voltage | 400 V |
| Plateau Length | 100 V |
| Recommended Supply Voltage | 450 V |
| Chrome Iron Cathode | 2000 mg/cm2 |
| Mica Window (17mm diameter) | 2.5 to 3.0 mg/cm2 |
