Compact Alignment Laser ZD-Green

Universal mini laser module with excellent visibility

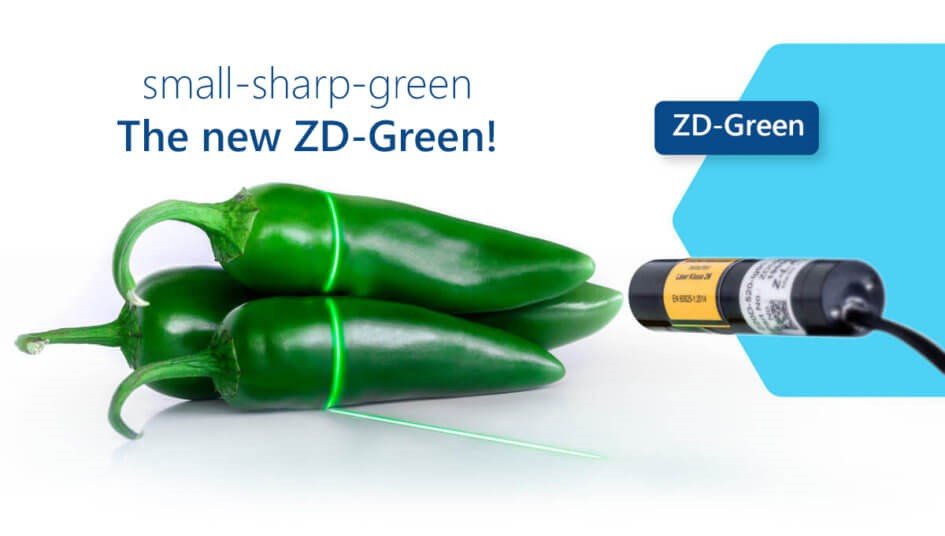

The ZD laser module can optionally display a line, point, or cross projection. It is often used as a positioning laser in the wood, stone and metal industries. With a diameter of only Ø11 mm, it can be used universally. The ZD Green stands out with its excellent visibility even at a low output power. In addition, a supply voltage of 5-24 VDC opens the door to various interesting applications. Output power of up to 40mW in combination with a 520nmLaser diodes are possible.

Specification & Models:

Specification	Value
Wavelength nm	520
Output power mW	1-40
Laser operation mode	APC with current limiting
Electrical specifications:	Operating voltage: 5-24VDC Protection: Reverse polarity and transient protection (ESD, burst & surge) Electrical isolation: Potential-free housing Connection: 2m cable with Texas connector Optionally: Cable up to 2m with open leads
Optical specifications:	Line: Line gaussian 90° (optionally homogenous 30°) Dot: Elliptical, circular DOE: Crosses, multi line, grids, etc. Focusable: No
Environmental conditions:	Operating temperature °C: -10 °C up to +40 °C Storage temperature °C: -20 °C up to +70 °C Humidity %: <90 non-condensing
Mechanical specifications:	Weight: 35 g Length: 51 mm Diameter head: 11 mm Material: Messing, black chrome Protection class: IP40, IP30 for dot laser
