WIC Industrial – Thermal Camera with IP67
Workswell WIC Industrial is a thermal camera designed and manufactured for easy and user-friendly plug&play integration for all process control and quality control applications. Customers can choose from two types of camera resolution, ie. 640×512 or 336×256 px, also from several different lenses and can choose temperature range up to 1 500 °C. Internal electronics is protected by high IP66/IP67 rating enclosure and can be installed in harsh conditions from -50 °C to +200 °C. Also 30mK sensitivity is offered in standard.
Features & Benefits:
- Fully radiometric and calibrated sensor
- Harsh conditions -50 °C to 200 °C (-58 °F to 392 °F)
- Linux x86 and Windows SDK in the package
- Desktop software CorePlayer
- Different lenses available
- Temperature range up to 1 500 °C (2 732 °F)
- Up to 60 Hz frame rate
- 30mK sensitivity in standard
- 1Gb/s Ethernet interface
- Sensor resolution 640 x 512 px and 336 x 256 px
- IP66/IP67 protection rating
- ThermoInspector and Hoof Inspector compatible
- Additional accessories available
- Internal temperature control (cooling / heating)

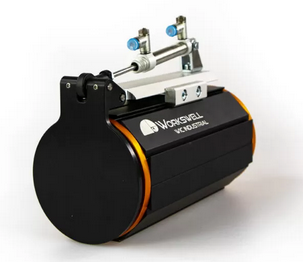

- Pneumatic shutters and wind curtains
- Mounting brackets and adapter plates
Applications:

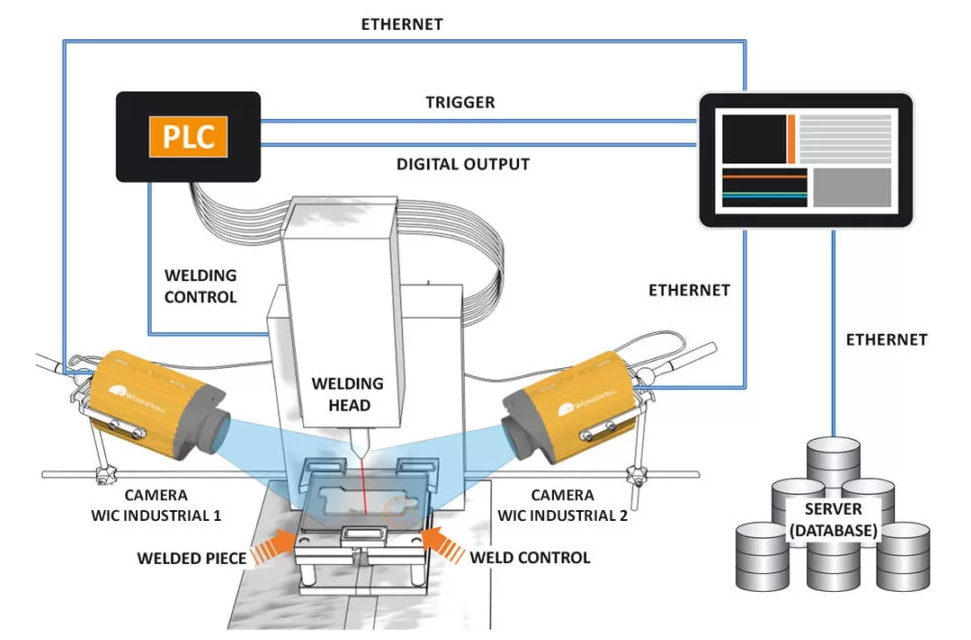

- Laser Welding
- Soldering
- Laminating
- Windscreen Heating
