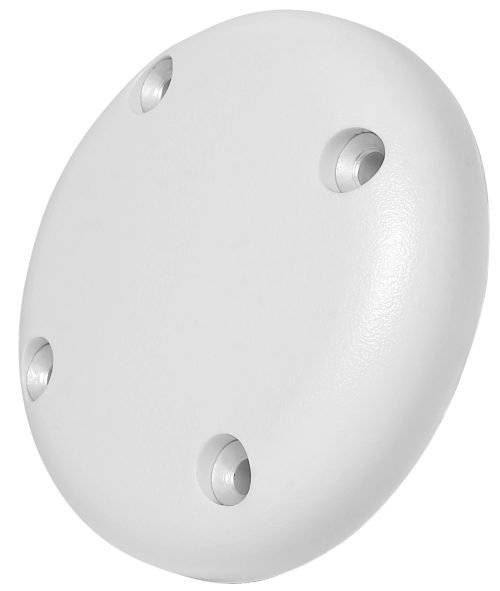

Trimble GNSS Antenna AV34
The Trimble AV34 GNSS Antenna has been designed to support high accuracy aerial, land and marine applications in one compact design.
COMPREHENSIVE GNSS SUPPORT
The Trimble AV34 GNSS antenna offers support for both GPS and GLONASS L1/L2 signals. These are the optimum set of signals for your high accuracy RTK receiver. Dual frequency allows for faster initialisation and dual constellation improves the number of satellites available for positioning, especially in obstructed environments.
ROBUST, LOW-MULTIPATH GPS ANTENNA
The antenna resists unwanted signal interference or multipath, which can cause inaccurate measurements. Multipath is caused by signals being reflected from surfaces such as the ground, surrounding trees, or buildings.
FLEXIBILITY
The antenna is an aviation type of design. The bulkhead mounting ensures only the rugged radome is exposed to the elements and can be mounted flush with the vehicle surface or on the top of a pole mount. The TNC connector is located on the underside of the unit ensuring the attached cable is protected from the environment.
Features & Benefits:
- Support for GPS L1, GLONASS L1, GPS L2 and GLONASS L2
- Low-profile Fuselage/Bulkhead Mounting
- Sub-centimeter phase center repeatability
- Compact lightweight rugged package for easy integration
- Weight: 213g
- Size: 21mm (H) x 89mm (D)
Applications:
- Aerial Applications
- Land Applications
- Marine Applications
