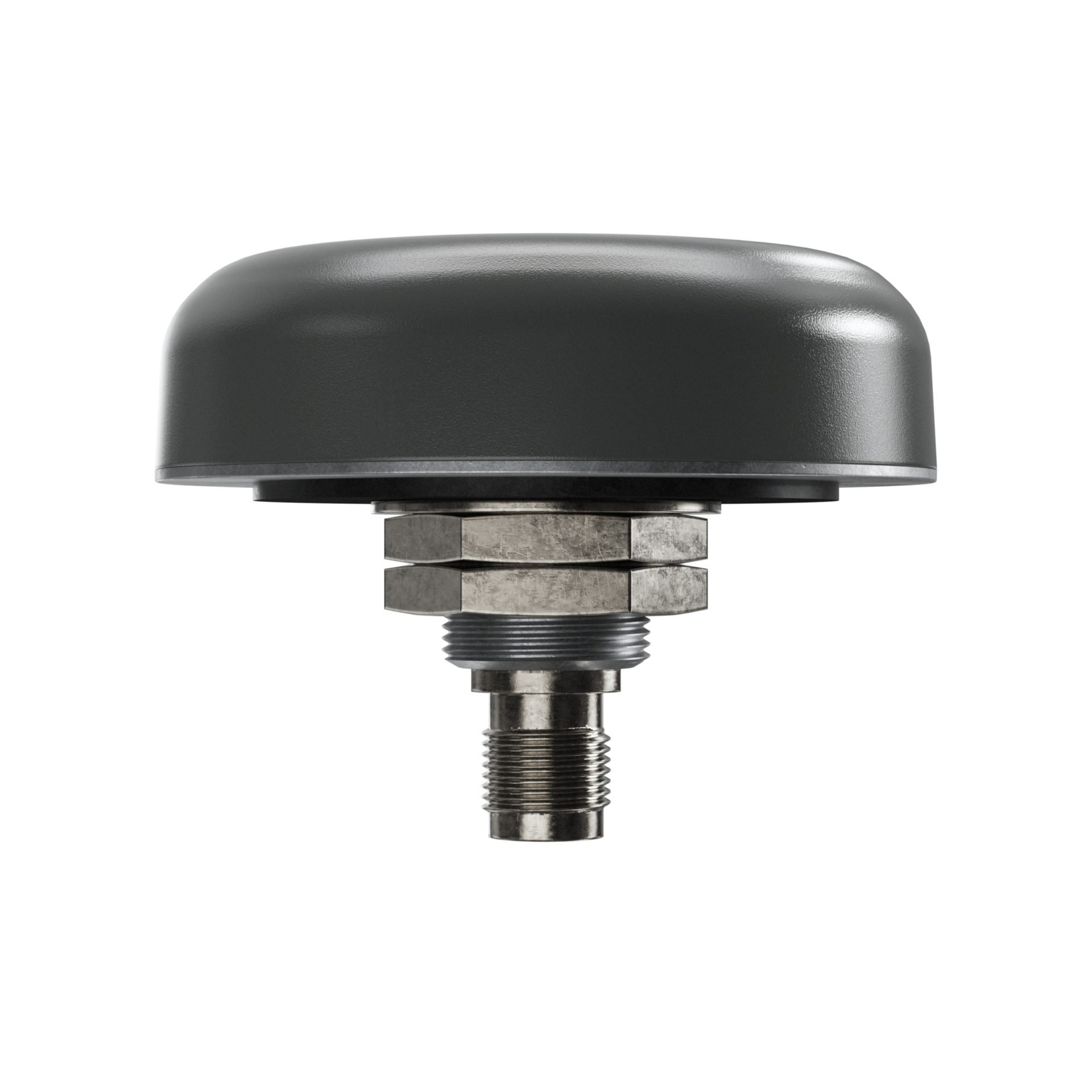

Trimble GNSS Antenna AV28
Accurate, lightweight antenna
The Trimble® AV28 GNSS antenna is a precise triple-frequency and L-band antenna, supporting a wide range of robotics, autonomous vehicle guidance, UAV and aerial applications where the weight and size of the antenna really matter.Comprehensive
GNSS support
The Trimble AV28 offers full support for GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a+b and BeiDou B1/B2 as well as Trimble RTX® and OmniSTAR® correction services via L-Band. It is especially designed for precise triple frequency positioning.
Designed for accuracy
Trimble AV28 features a precision tuned, twin circular dual feed, stacked patch element and offers excellent axial ratio and a tightly grouped phased center variation. This unique design ensures superior multi-path signal rejection. The AV28 also has a strong pre-filter to mitigate inter-modulated signal interference from LTE and other cellular bands.
Features & Benefits:
- Ideal for triple frequency RTK systems
- Advanced multipath rejection
- Weight: 185g
- Size: 21mm (H) x 66mm (D)
