MONITOR Imaging System
Imaging System for remote real-time supervision.
The MONITOR system has been specifically developed for the supervision of working and automation environments by providing high quality imaging from within the workspace. Multiple independently controllable views allow for excellent contextual understanding by providing both overview and zoomed-in detail. All these views are digitally extracted in real time from a single image sourced from a very high quality, high resolution machine vision camera.
Key Information:
- 12 to 40 MP colour or monochrome sensors, and/or 5 or 12 MP polarising sensor
- High speed GigE or USB 3
- Selectable ultra-high resolution (e.g., 4912 x 3684)
- Selectable Cinema 4K resolution (4906 x 2304 or 4096 x 2160 resolution)
- Selectable HD resolution (1920 x 1080)
- Single or continuous image acquisition and local or network archiving
- Fully configured and pre-loaded high-performance Windows 10 PC
- Can be supplied with integrated lighting
- Rugged IP rated camera and lighting housing
- Simple integration
- Easy to operate
Features & Benefits:
- High quality megapixel images
- Live streaming feeds direct to operators

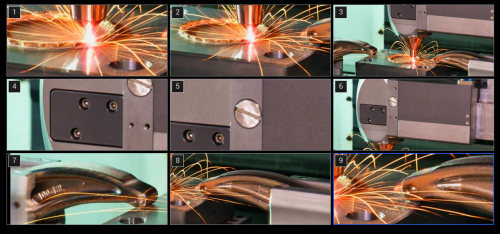

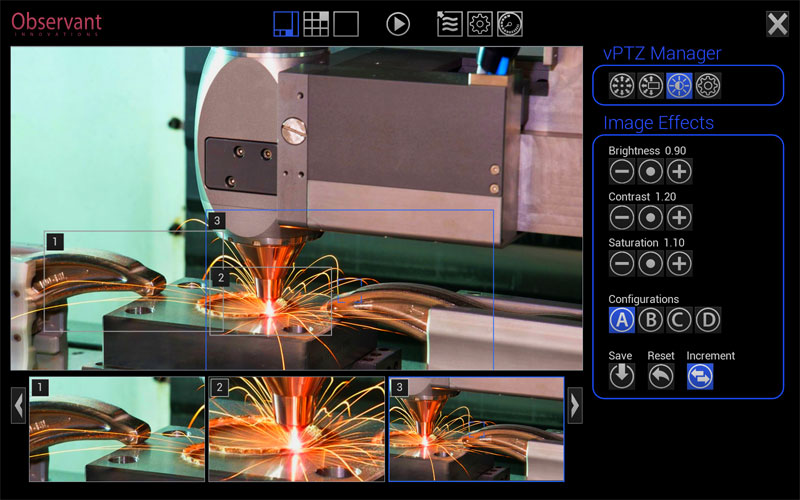

- Multiple virtual 2D Pan, Tilt & Zoom (vPTZ) views of the workspace and devices
- Recordings provide retrospective analysis of processes and problems
- Simple integration with no operator interaction required
- Optional image analytics can provide alerts
- Augmented Reality overlays can track correct process progress
- Captures entire operation as it proceeds
- Quickly identifies and flags problems
- Speeds up corrective actions
- Provides clarity to post process review
- Cost effective system that saves time and money by enabling real time intervention
Datasheets:
The Challenge
Visibility of the work processes is often restricted by the viewing angle, poor visibility and lighting, reflection and glare. It can be challenging for operators to establish and retain an overview of processes even when close to the workspace, remote overview can be even more challenging.
The Solution
MONITOR ensures that operators can now view real time imaging transmitted live from within a workspace to a local screen, or their desktop, laptop or mobile device, facilitating supervisory overview of live processes, and post-process review.
Recording
The system continually records physical processes, capturing and archiving images which allow both live and retrospective vPZ views. Once started, the system requires no interaction as all operating processes are fully automated. Time tagged recorded data is securely stored on the system’s own data storage PC.
The system may be configured to meet unique operational requirements, for example, to store all recordings in a single archive, create a new archive for each new day of operation, or even to create a new archive each time a recording application is run.
Reviewing
With versatile screen layouts, powerful timeline searching and playback controls, the REVIEW software simplifies post process analysis, providing that all-important information and evidence as to what happened and why.
