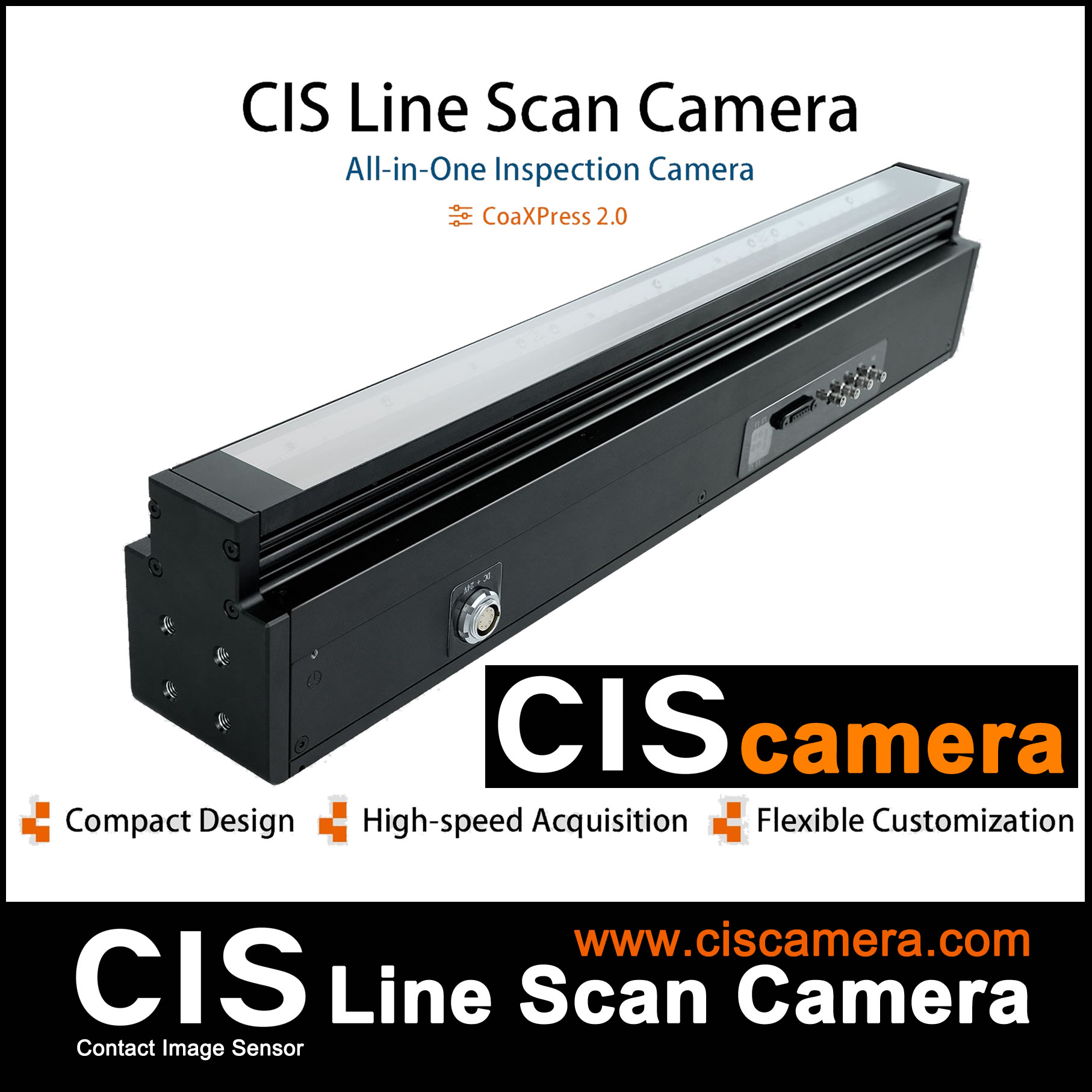

CIS Line Scan Camera – CoaXPress
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for more information on the CoaXPress Interface CIS Line Scan Camera
Features & Benefits:
- Compact – easily integrated into production lines/machines, reducing the volume of inspection systems
- 1:1 imaging with telecentric view to detect printed graphic quality and surface damage effectively
- Single scanning width from 18 ~ 6000mm*, no alignment issue of multiple cameras and lenses
- Flexible external light angle allows inspection of even more defects, such as small holes
- Single CIS supports reflected light and backlight
- Optional filter to eliminate parasitic light
Applications:
- Battery foil inspection: coating, slitting, notching, lamination
- Printing: label, narrow web, metal sheet, carton
- Plastic film packaging
- Glass and ceramic surface inspection
- Panel: surface, dimensions, hole alignment
- Silicon wafer: pattern, serial number, crack, dust
- Textiles: leather quality, cloth colour/quality
Specification & Models:
| Technical Parameters <CIS-CX1P/CIS-CX2P Series> | Customisation | ||||
|---|---|---|---|---|---|
| Scanning width (mm) | 54/108/200/345/450/650/800/940/1300/1700/1960/2200/3000 CIS-CX1P(54~3000)M/C;CIS-CX2P(54~3000)M/C |
Scanning Width 18-6000mm | |||
| Resolution (dpi) | – | 300 | 600 | Resolution 300dpi, 600dpi | |
| Precision (mm) | – | 0.084 | 0.042 | ||
| Scanning speed (8bit/10bit, full output, CX P2.0) | Mono | m/min | 685 | 223 | |
| KHz | 135 | 93 | |||
| Colour | m/min | 685 | 223 | ||
| KHz | 135 | 93 | |||
| Scanning speed (8bit/10bit, full output, CX P2.0 – new sensor) | – | 600 | 1200 | Resolution 600dpi, 1200dpi | |
| – | 0.042 | 0.021 | |||
| Mono | m/min | 350 | 110 | ||
| KHz | 140 | 88 | |||
| Colour | m/min | 116 | 36 | ||
| KHz | 46 | 29 | |||
| Inner light source | R/G/B or White | External light source | |||
| Working distance (mm) | 3.5/8/14.8/17.2/29.3/48.4 | 3.5-48.4mm | |||
