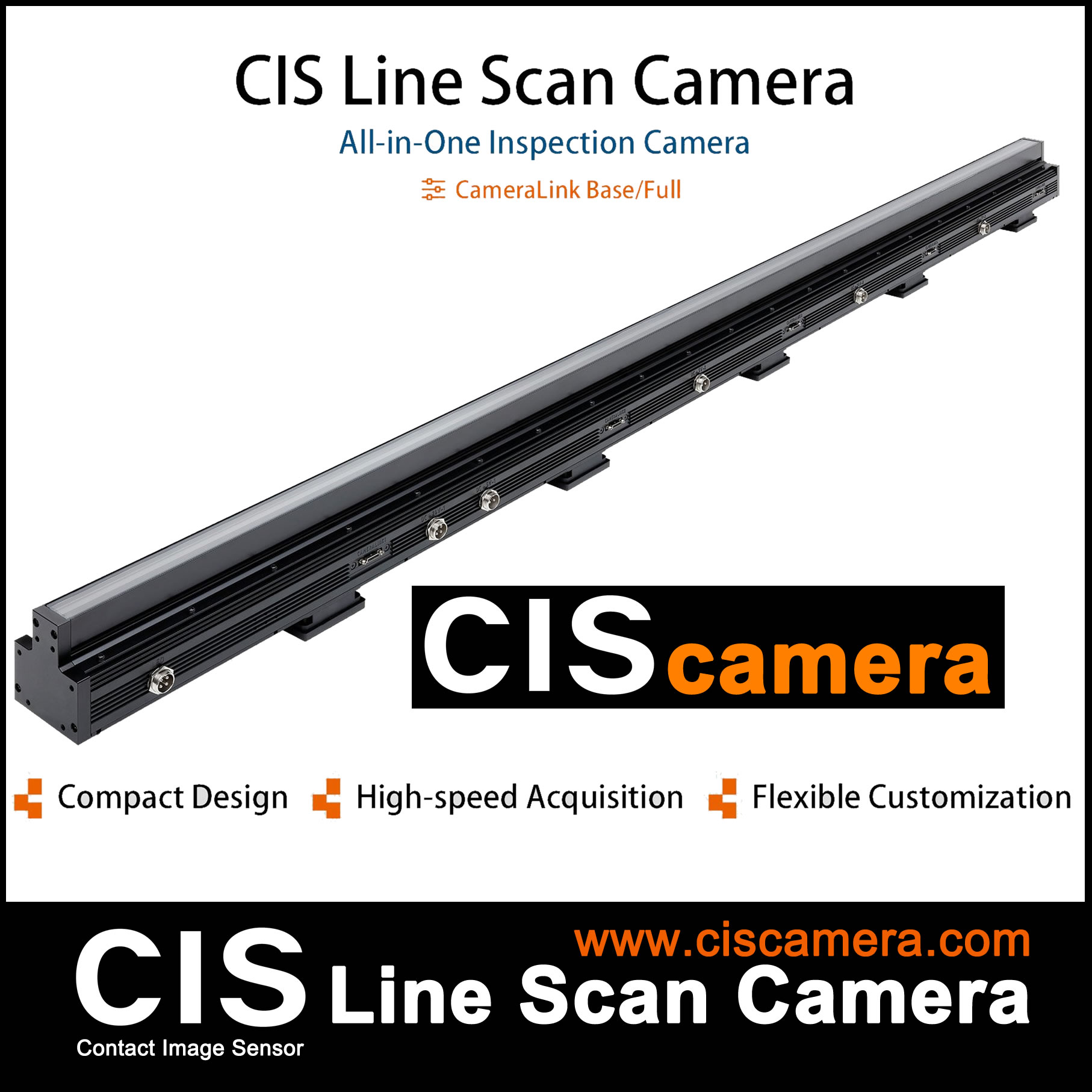

CIS Line Scan Camera – Camera Link
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for the Camera Link Interface CIS Line Scan Camera options:
Features & Benefits:
- Compact – easily integrated into production lines/machines, reducing the volume of inspection systems
- 1:1 imaging with telecentric view to detect printed graphic quality and surface damage effectively
- Single scanning width from 18 ~ 6000mm*, no alignment issue of multiple cameras and lenses
- Flexible external light angle allows inspection of even more defects, such as small holes
- Single CIS supports reflected light and backlight
- Optional filter to eliminate parasitic light
Applications:
- Battery foil inspection: coating, slitting, notching, lamination
- Printing: label, narrow web, metal sheet, carton
- Plastic film packaging
- Glass and ceramic surface inspection
- Panel: surface, dimensions, hole alignment
- Silicon wafer: pattern, serial number, crack, dust
- Textiles: leather quality, cloth colour/quality
Specification & Models:
| Technical Parameters <CIS-CLB/CIS-CLF Series> | Customisation | ||||||
|---|---|---|---|---|---|---|---|
| Scanning width (mm) | 54/108/200/345/450/650/800/940/1300/1700/1960/2200/3000 CIS-CLB(54~3000)M/C;CIS-CLF(54~3000)M/C |
Scanning Width 18-6000mm | |||||
| Resolution (dpi) | – | 100 | 200 | 300 | 600 | Resolution 100dpi,200dpi,300dpi,600dpi | |
| Precision (mm) | – | 0.25 | 0.125 | 0.084 | 0.042 | ||
| Scanning speed (8bit, Base) | Mono | m/min | 1486.8 | 516.6 | 263.4 | 77.4 | |
| KHz | 97.5 | 67.7 | 51.9 | 30.3 | |||
| Colour | m/min | 495.6 | 172.2 | 87.6 | 25.8 | ||
| KHz | 32.5 | 22.5 | 17.3 | 10.1 | |||
| Scanning speed (8bit, Full) | Mono | m/min | 2646 | 948 | 495.6 | 147.6 | |
| KHz | 173.9 | 125 | 97.5 | 58.1 | |||
| Colour | m/min | 882 | 317.4 | 165 | 49.2 | ||
| KHz | 57.9 | 41.6 | 32.5 | 19.3 | |||
| Inner light source | R/G/B, IR/UV (optional) | External light source | |||||
| Working distance (mm) | 3.5/8/14.8/17.2/29.3/48.4 | 3.5-48.4mm | |||||
